Personal engine · DirectX 12 · Day —

RetroEngine

A DirectX 12 engine I'm writing solo, from scratch. Its display is a CRT simulated from first principles: beam, phosphors, mask, glass. It isn't a filter laid over the image. It started as a renderer and has grown into a game engine, with an editor, streaming terrain, and a first-person game being built inside it.

Try the CRT breakdown Dev logs retrogameengine.com

Day 315: the game being built inside the engine, through the CRT.

Solorenderer, editor, and tools, written by one person

DX12no engine layer underneath; Dear ImGui is the only dependency

60 FPSon a potato (a Radeon 660M integrated GPU)

80.lvfeatured, along with GenerationAmiga

// 01 · How the CRT works

Inside the engine

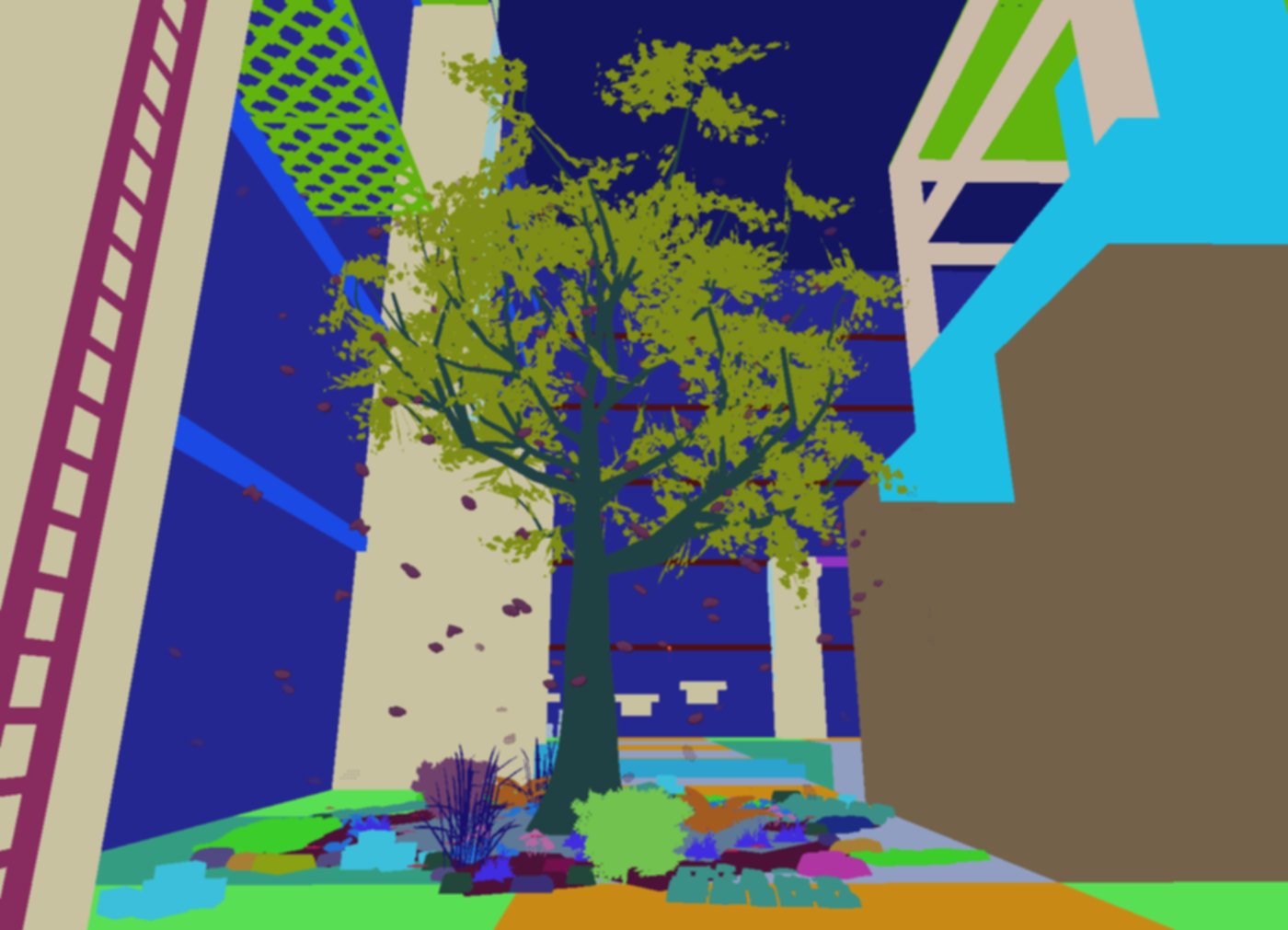

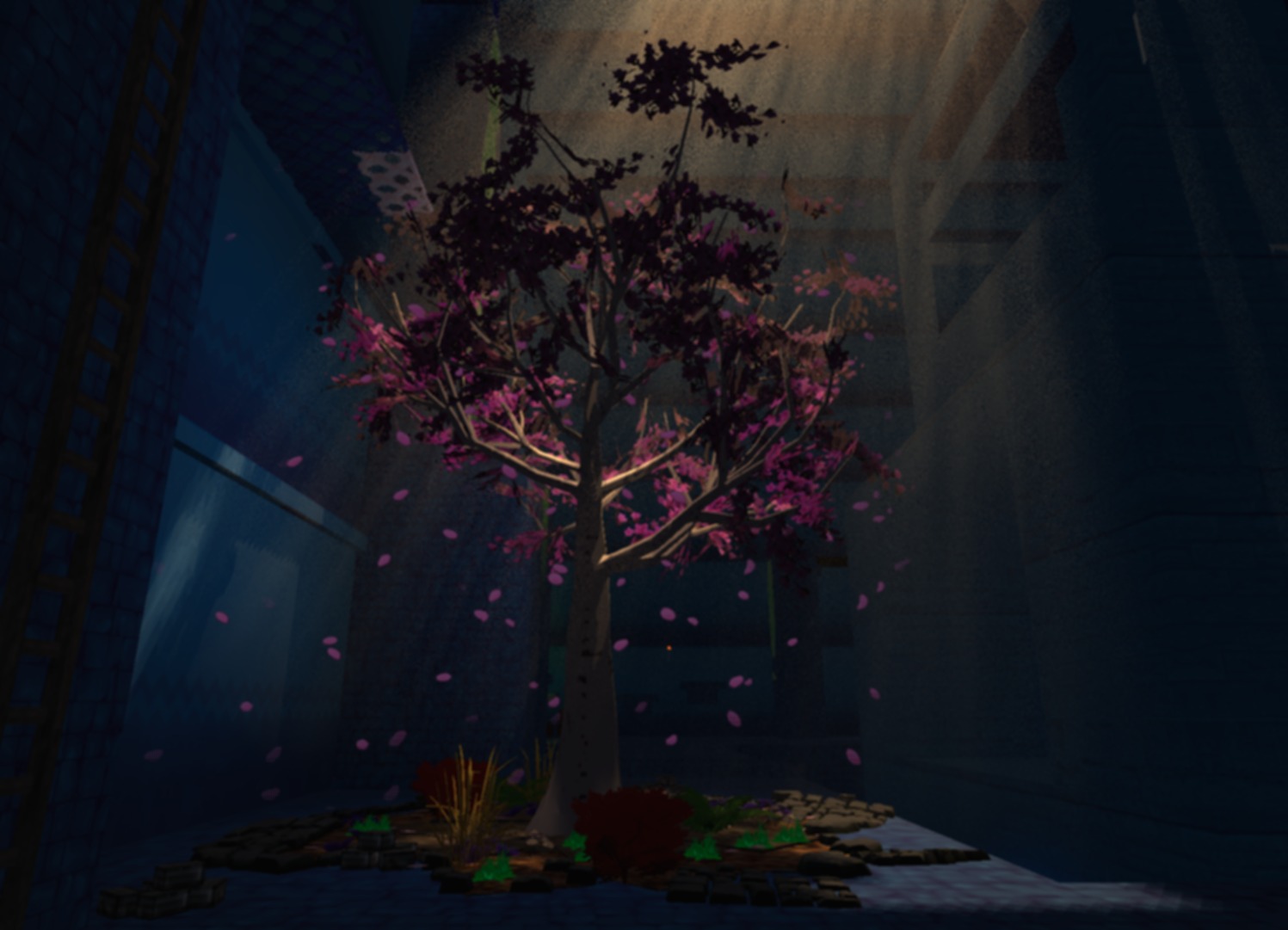

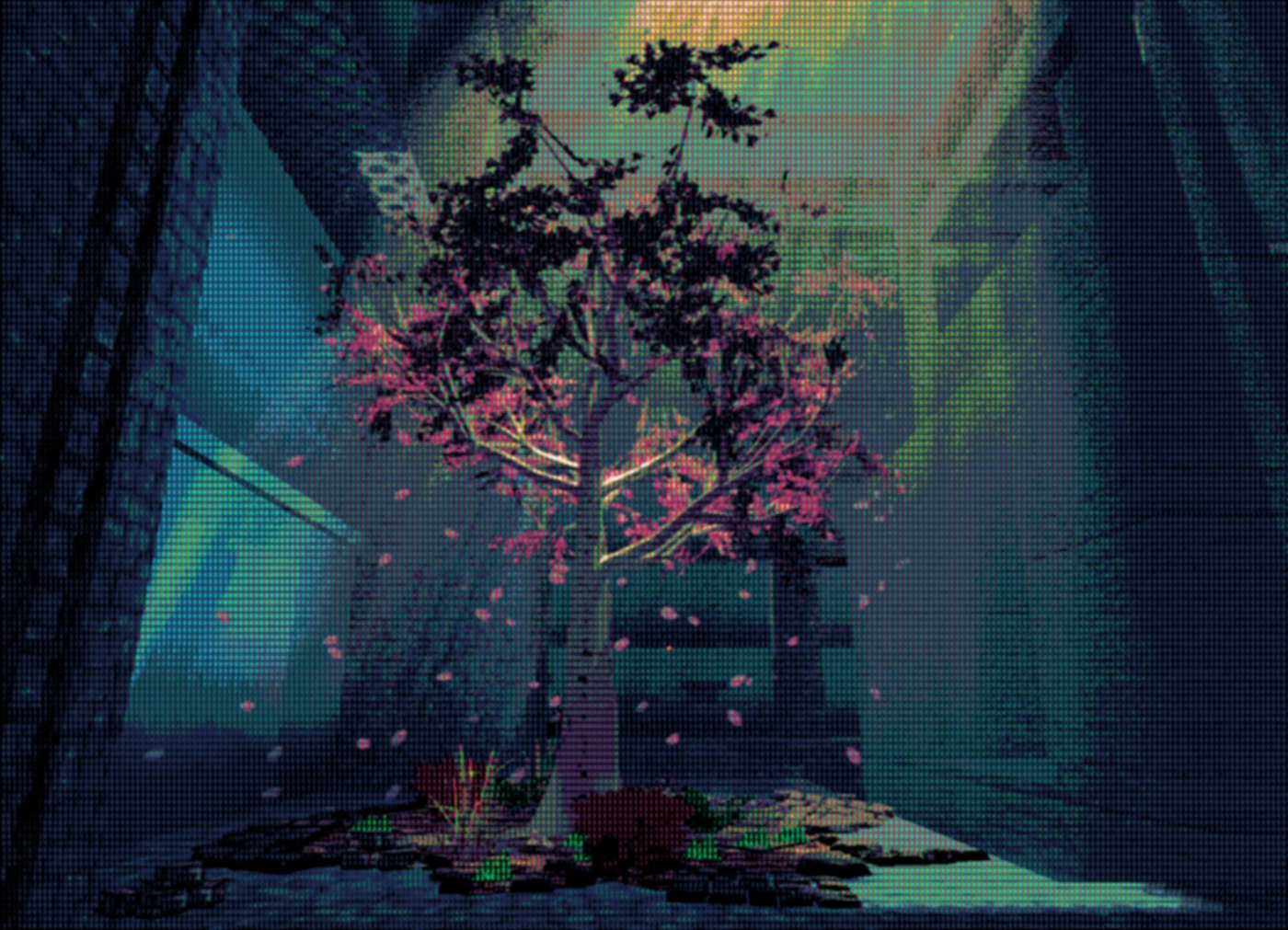

These are the engine's own debug views for a single frame, captured with the snapshot tool I built into the editor. Step through them in the order the engine runs them.

Play with it

A hands-on version that runs live in your browser, fed with the raw scene from above. Step through the stages, slow the beam down to watch it scan, swap the mask, and zoom in on the phosphors.

Beam speed Mask Persistence Zoom Camera driftgives persistence motion to trail; drag to swing it

Try your own image or drop one on the screen. It stays on your computer; nothing is uploaded.

A simplified WebGL version written for this page, using textbook models of each stage. The engine does this in HLSL on DirectX 12, with more stages and its own tuning.

Your browser doesn't support WebGL2, so the live demo can't run here.

// 02 · Performance

60 FPS on the bottom 10–15%

The AMD Radeon 660M is an integrated GPU with six RDNA2 compute units, in the bottom 10–15% of gaming hardware.

RetroEngine holds a stable 60 FPS on it with all of this running at once:

The full CRT pipeline
Terrain streaming and procedural generation
HDR rendering
The editor

That's before GPU instancing, frustum culling, or LODs, which are still ahead.

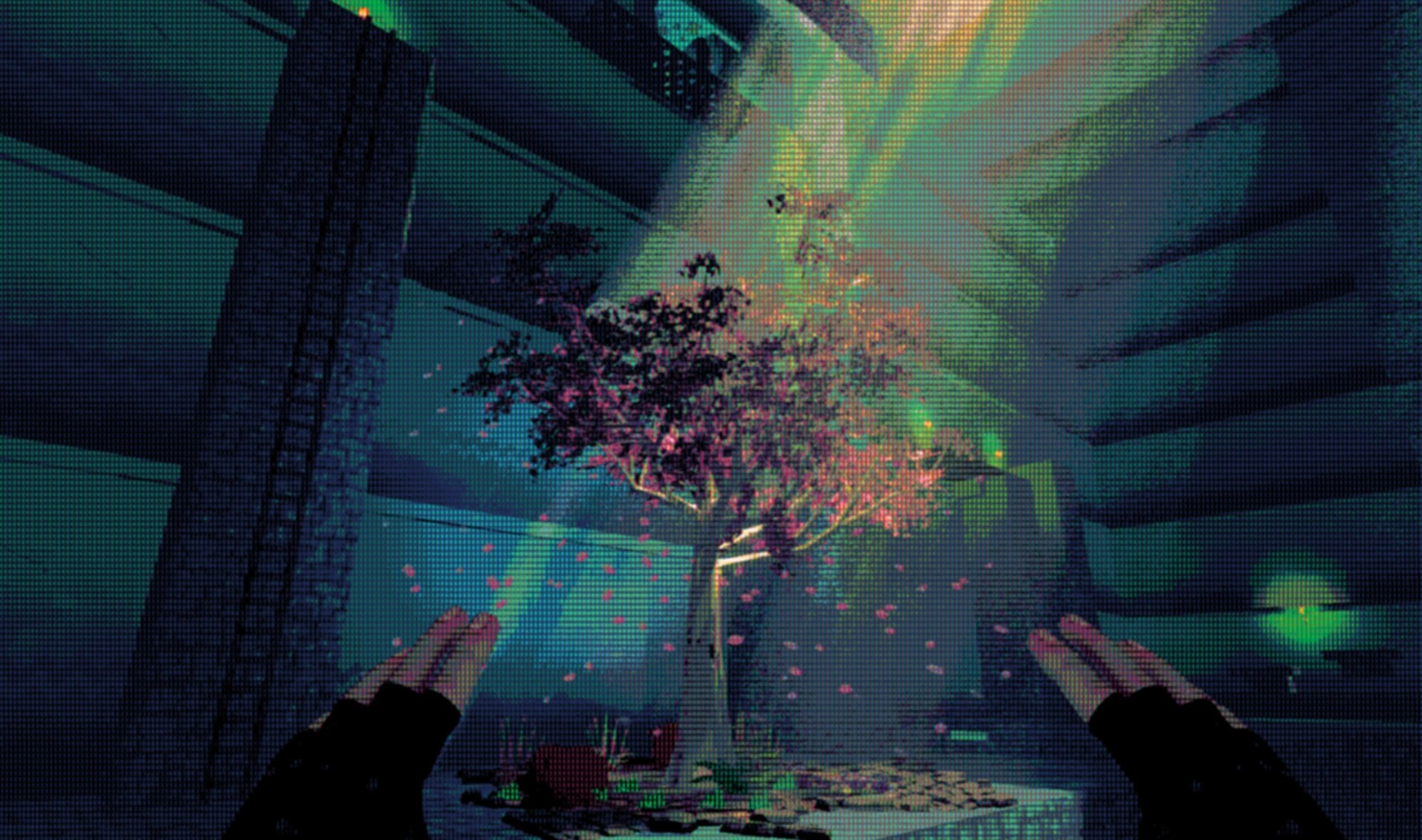

A blossoming tree in a ruined courtyard, rendered through the CRT simulation

// 03 · The engine around the CRT

Everything else, also from scratch

Shared-ownership texture cache

Textures used to belong to the terrain chunk that loaded them, so one 4096×4096 terrain texture was duplicated in every chunk. A global cache with deterministic keys means each texture is loaded once and shared. Memory stays flat no matter how many chunks are loaded.

ECS

A component-based entity system with strict GPU resource ownership, deterministic lifetimes, multi-scene loading, safe deletion, and scenes saved as parameters only.

Terrain streaming

Chunks stream in around the camera. Whole worlds regenerate deterministically from a seed and a handful of parameters.

Deterministic time

Engine-level pause, rewind, and replay. Inputs and scene state scrub along a timeline, which makes debugging much easier.

Editor

A dockable ImGui editor: object picking, snapping gizmos, a chunk palette, live material authoring, and a GPU memory panel showing texture memory, SRVs, and instance counts.

Lighting

Directional shadow maps, point lights, volumetric light shafts, and fog in a single fullscreen pass, with separate directional and ambient color for predictable art direction.

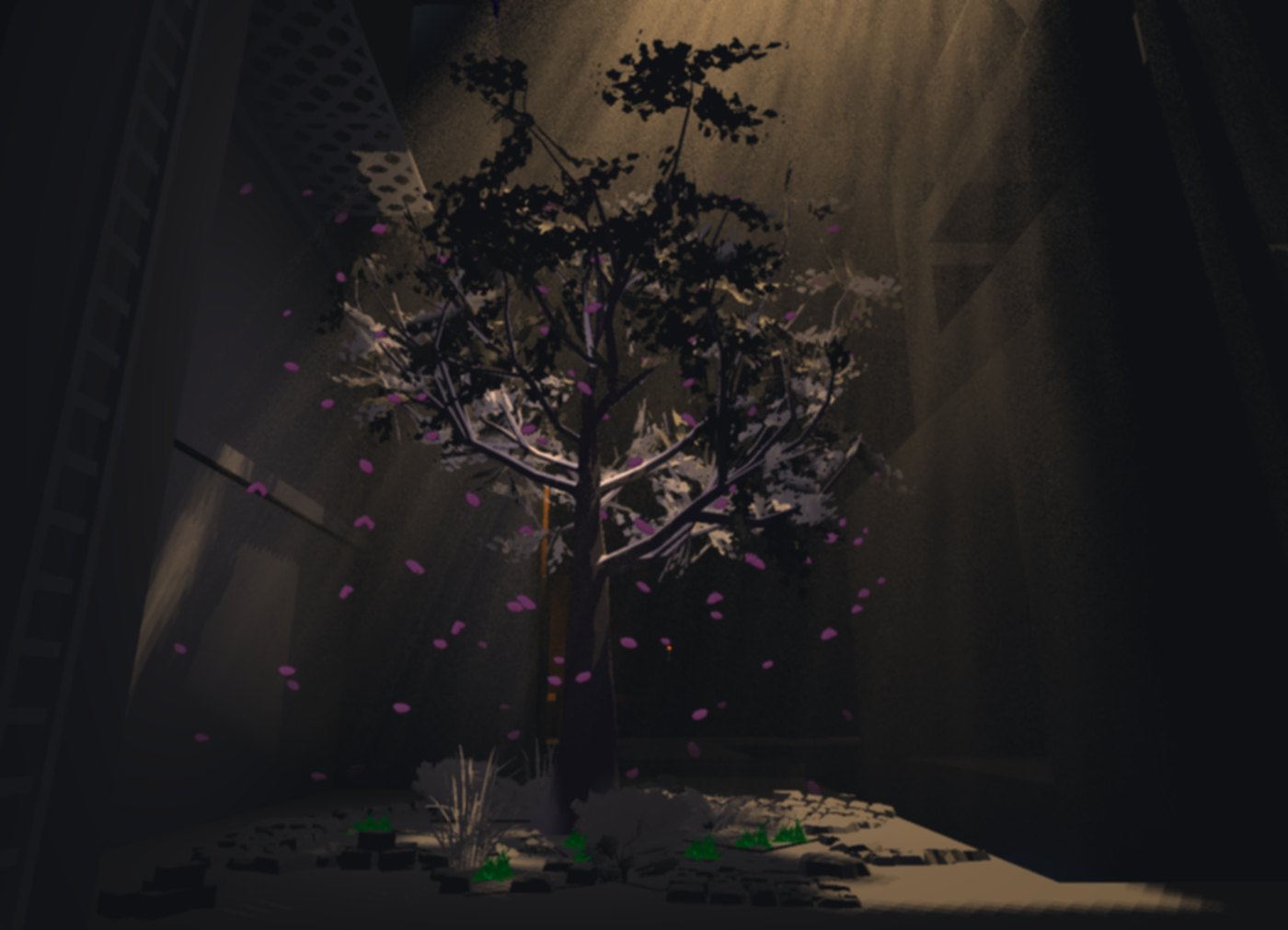

Lighting, layer by layer

The same frame, split into its lighting layers.

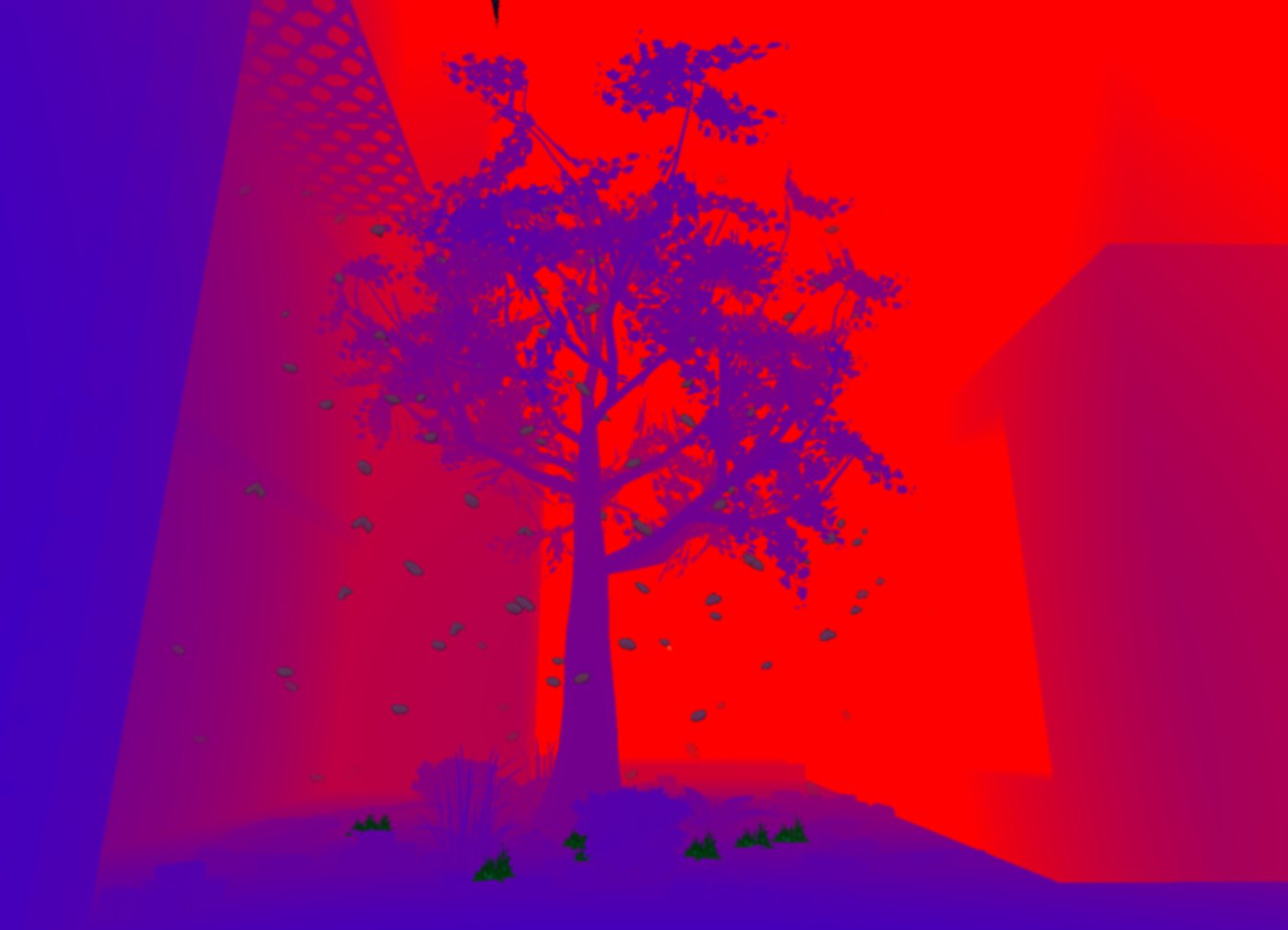

Distance gradient debug view — Distance gradient

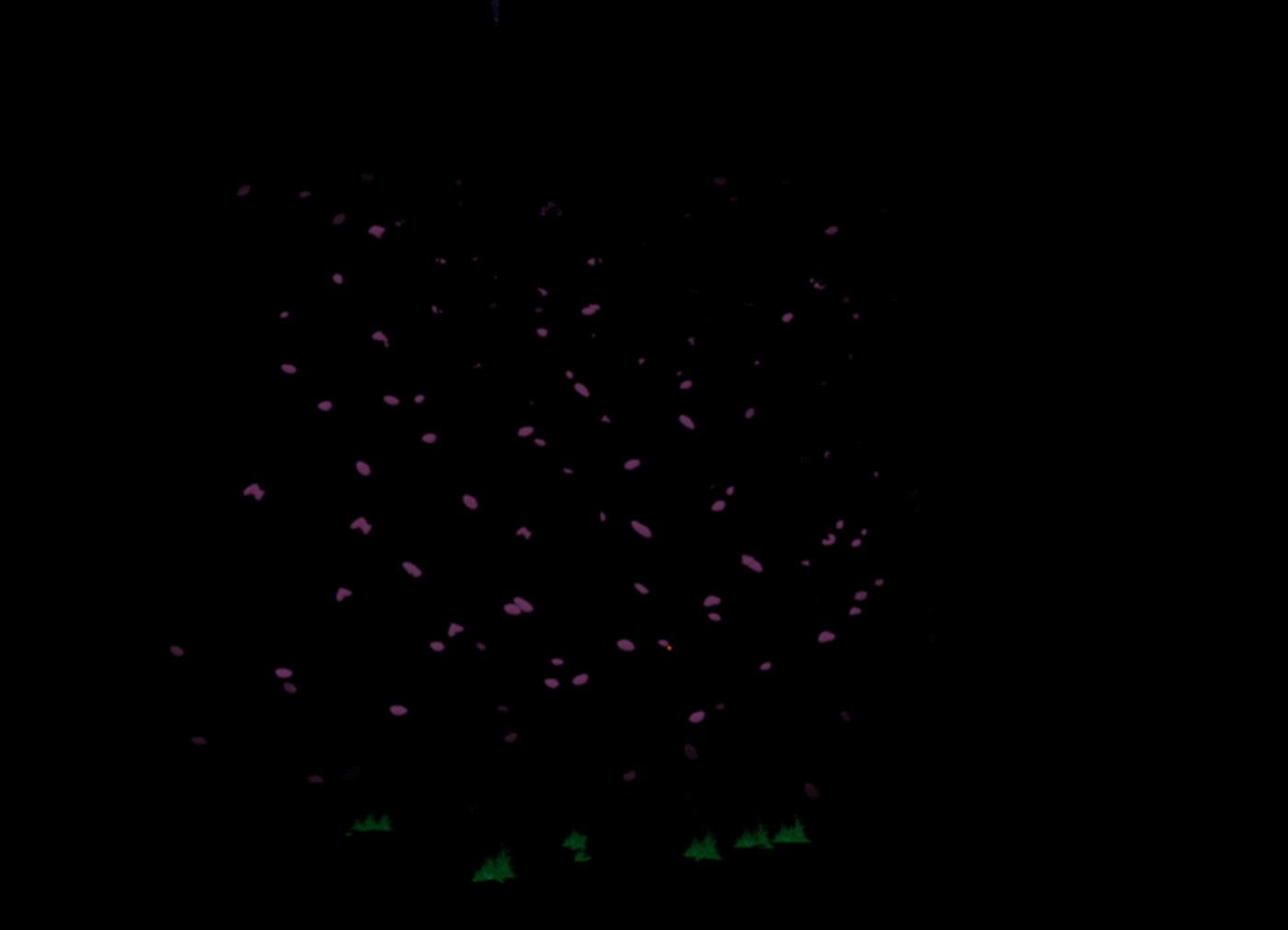

Saturation debug view — Saturation amount

The castle grounds.

// 04 · Dev logs

Built in public

Every step is written up on retrogameengine.com.
